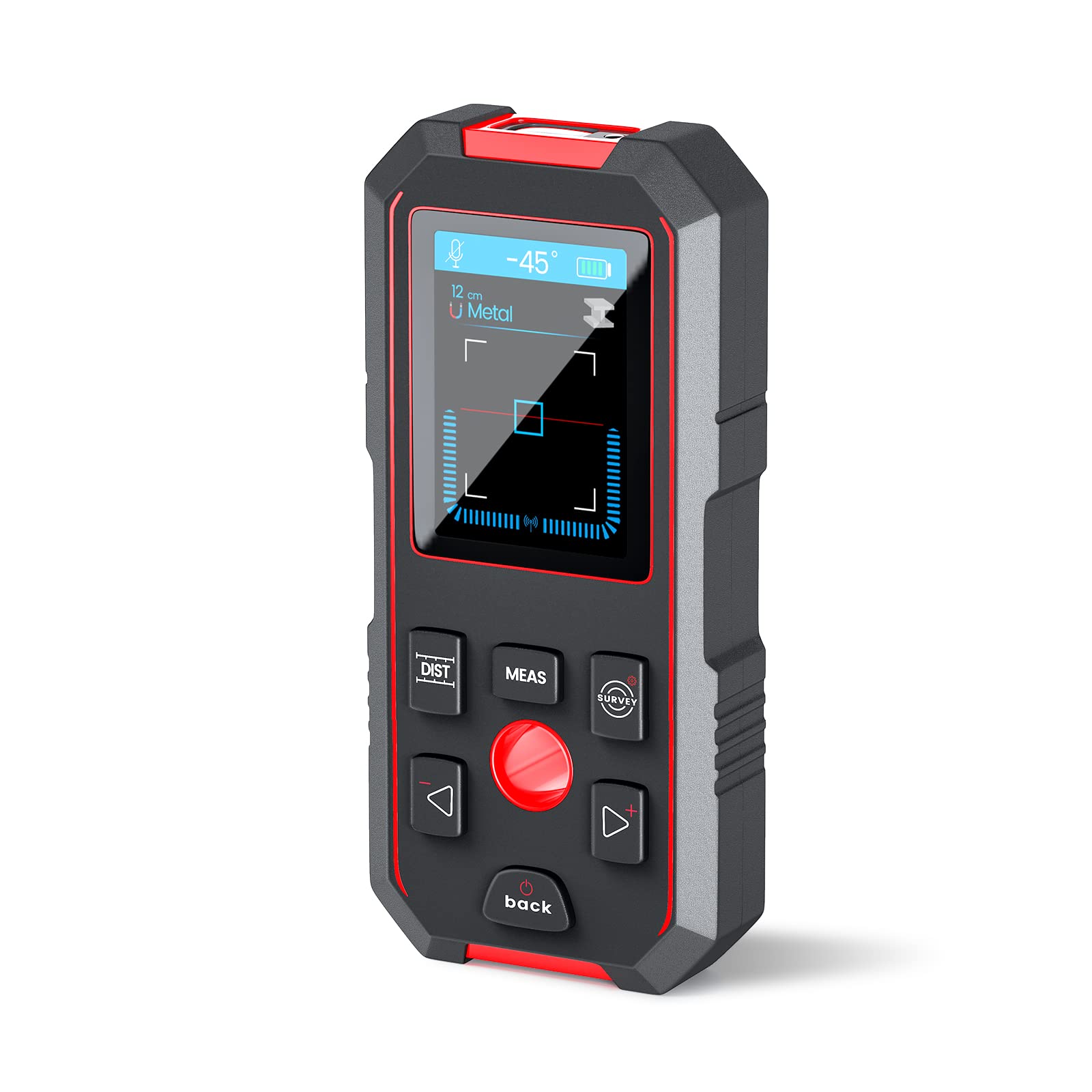

KOLSOL Stud Finder with 196ft Laser Measure, 3 in 1 Electric Wall Scanner Sensor with ±0.1° Digital Level Lithium Battery, LCD Studs Detector Audio Broadcast for Wood Magnetic Metal AC Wire Finding

KOLSOL Multi function detector NF-518S

Item Specifics:

Model Number: NF-518S

Main function: Laser distance+ Wall Detection+ Digital level

Color: Red+Black

Power: Lithium Battery (500mAh)

Appearance: 2 colors, solid shape

Screen Type: 2.4HDscreen,240*320 resolution

Charging: Type-C charging

Battery Type: Lithium Battery (500mAh)

Protect Lever: IP54

Audio Broadcast: Live Broadcast

Dimension (mm): 63*25*139 (mm)

Net.Weight(g): 200 ( g )

Laser Meter Function

Distance: 0.2-40/60m

Accuracy: +1.5mm+D*5out of hundred thousand

Laser Type: 630-670nm,<1mw

Laser Cat: Cat 2

Auto OFF: 3 minutes

Unit Switch Benchmark Switch: m/ ft/ in / ft+in Front / Bottom

Wall Detection Function

Depth Measurement

Magnetic Metal: 12cm

Non-Magnetic Metal: 10cm

AC power cable : 5cm

Wood: 3.8cm

Metal Detection

Testing figures provided with Φ20mm stainless pipe as tested object

Non Metal Detection √

AC power Detection √

Continuously Measurement Max/ Min value

Single Measurement √

Area Measurement √

Volume Measurement√

Pythagoras theorem √

Auto OFF 5 minutes

Operation Temperature: 0~50°c

Storage Temperature: -10~60°℃

Digital level Function

Digital level: ±90°℃

Secondary Pythagoras theorem 1 √

Secondary Pythagoras theorem 2 √

Triangle area measurement √

Trapezoid measurement √

Auto Horizon measurement √

Auto Vertical measurement √

Countdown measurement √

Digital level measurement √

Plus / Minus √

History Record Storage 50

Self collaboration √

Operation Temperature 0~40°℃

Storage Temperature -10~60°℃

• 【3 in 1 Multi-function Tool 】Stud Scanner, Laser Distance Meter and Protractor combined on 1 tool. Multi functional detector, useful for drill.
• 【Accurate Detetion Wall Finder】120 mm depth positon, can detect metal, wood, power cable beiling, wall floor and sheetrock. Metal: 100~120mm. Wood: 20~38mm. AC Power(90~250V): 50mm.

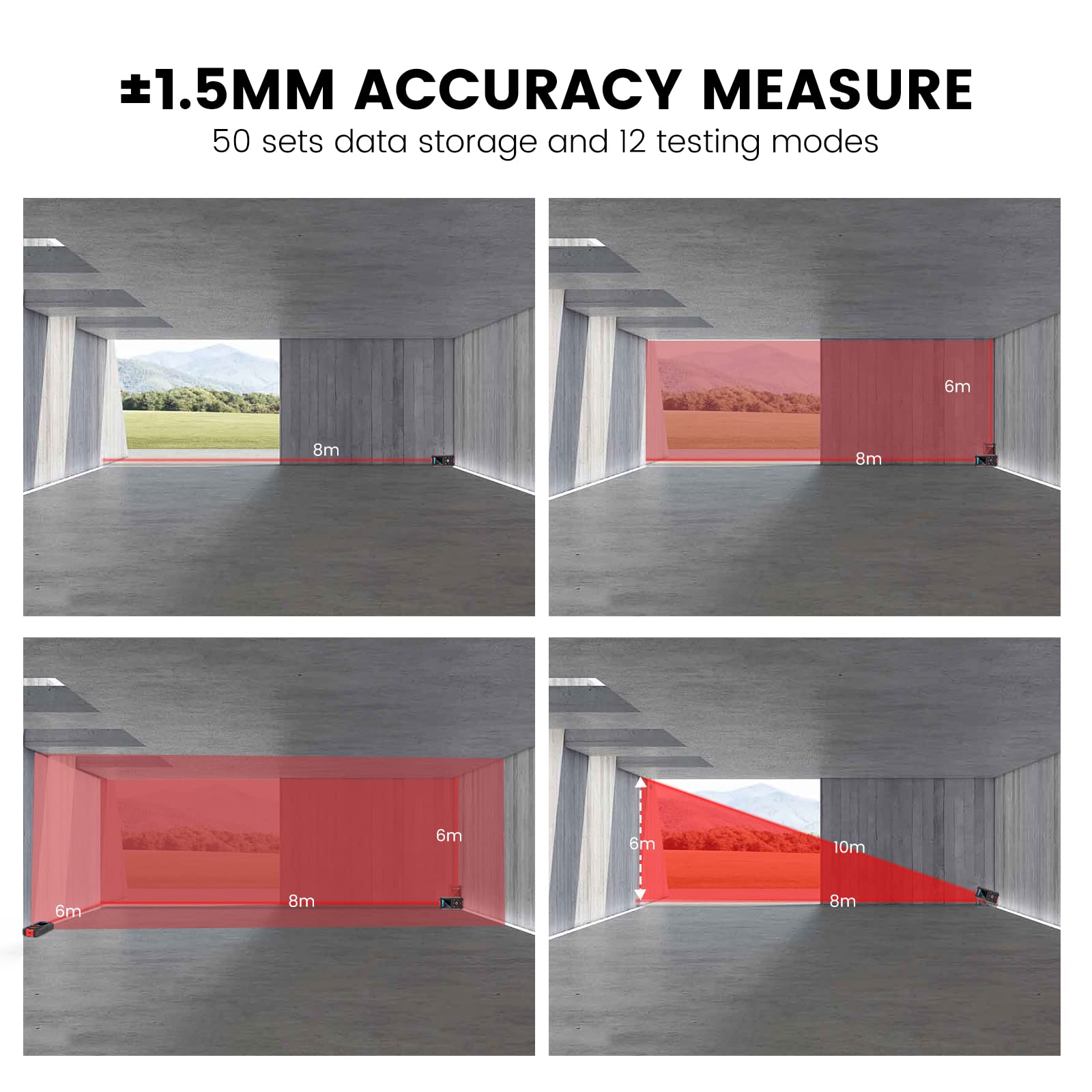

• 【60m Laser Meter】±1.5mm accuracy measure, widely used both indoor and outdoor. 50 sets data storage and 12 testing modes available to fulfill for ordinary usage.
• 【Angle sensor & Audio Broadcast】±0.1° angle accuracy, real time refresh. Live audio broadcast, knowing the result without looking at the screen.
• 【Must Tool for Home Using】Accuracy, convenient,durable, easy to use. No more calls,no more cost, find and fix it by yourself.
